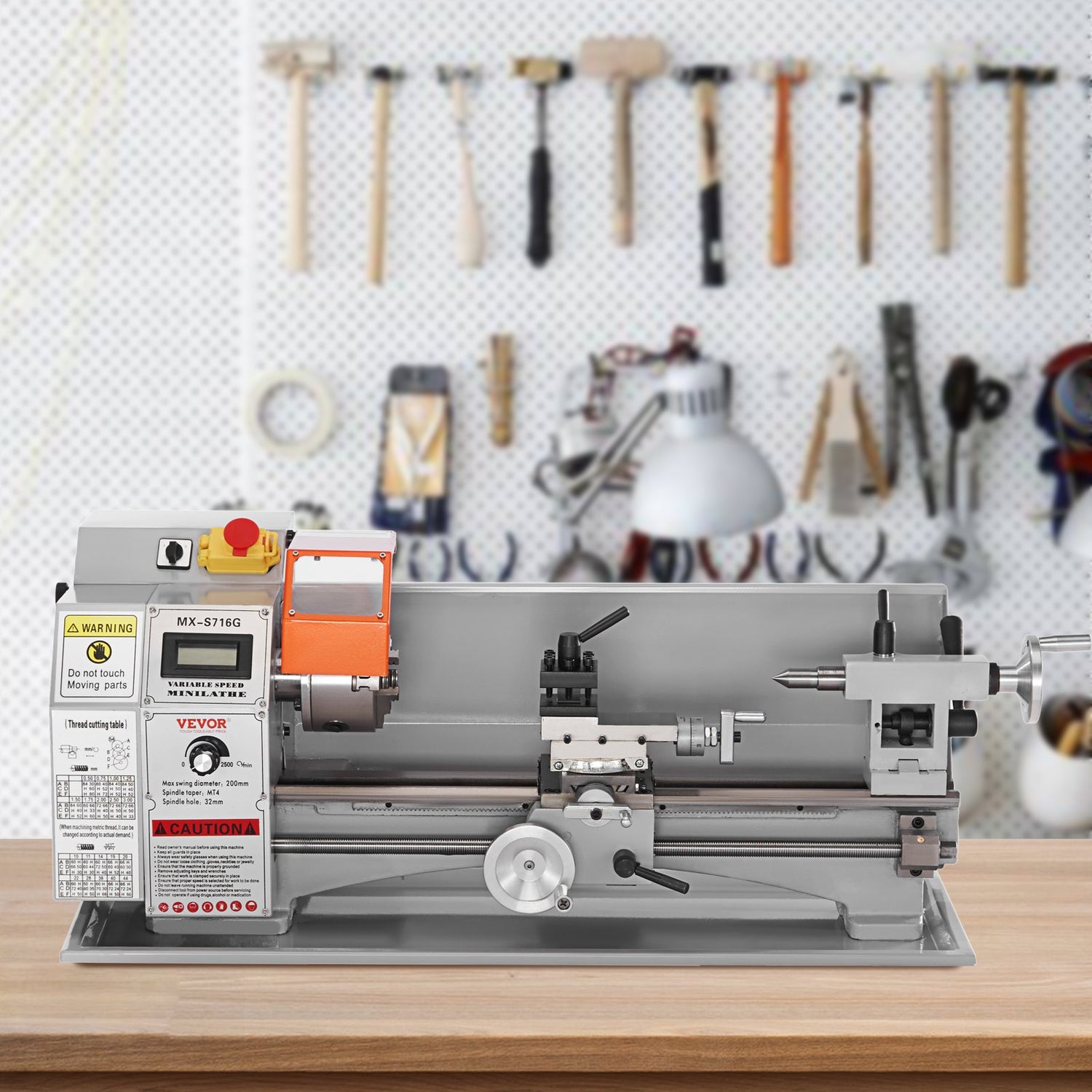

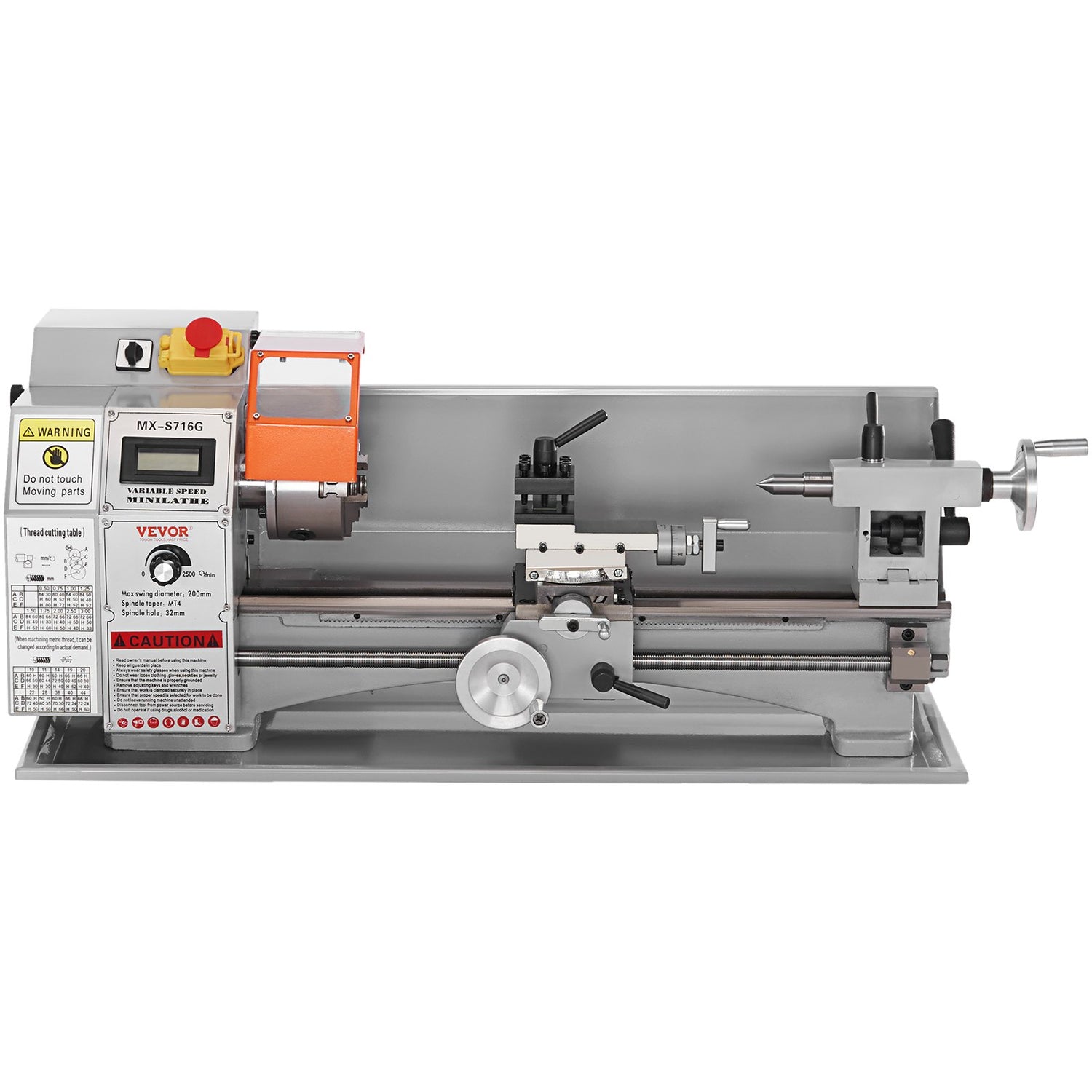

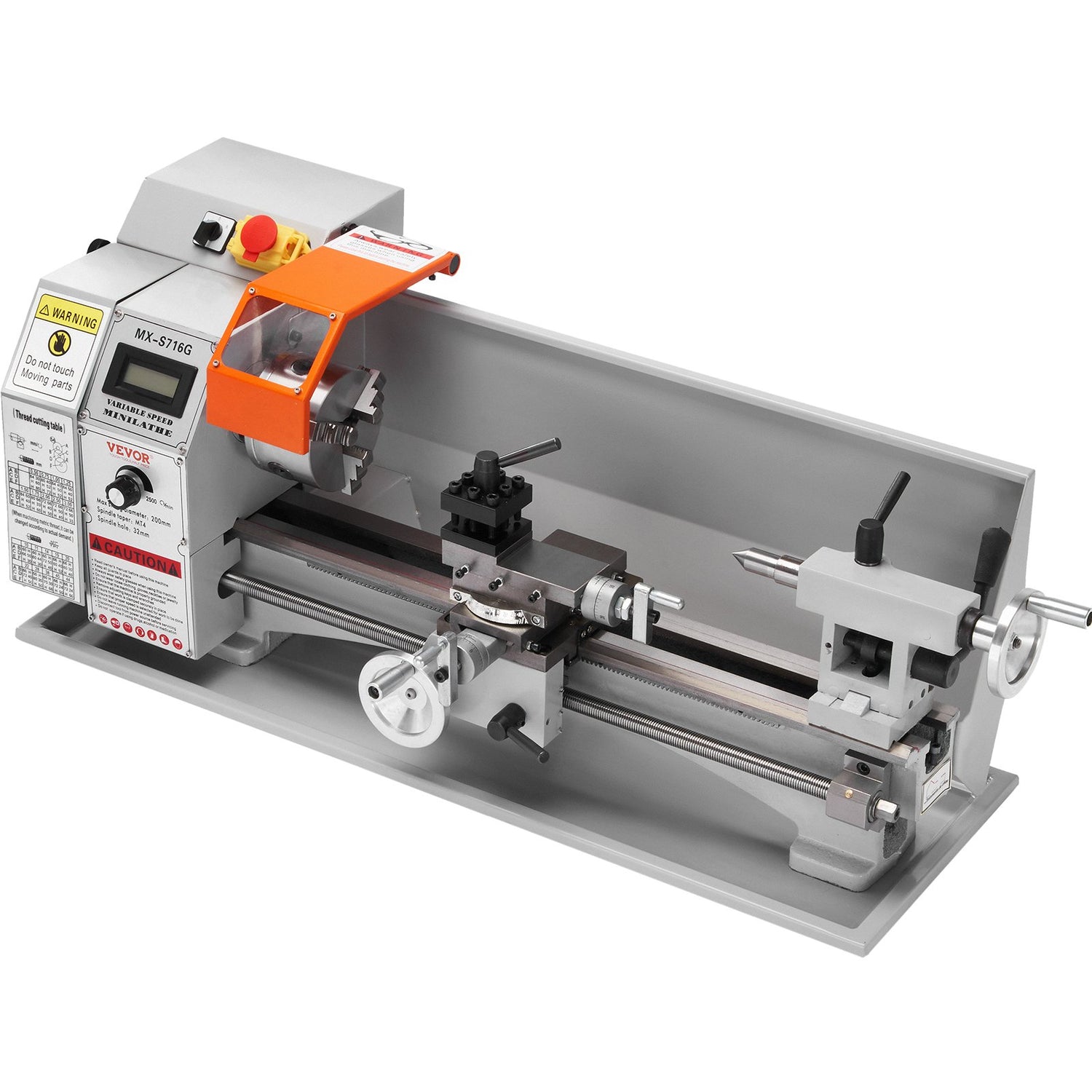

Mini Metal Lathe, 180 x 400 mm, 800 W Brushless Motor, 150 to 2500 RPM Variable Speed, Benchtop

A benchtop metal lathe sized for home workshops, model makers and small fabrication jobs. The 180 x 400 mm working capacity, quoted by the supplier as 7 inch by 16 inch, handles precision parts, model components and small turning work without needing a full workshop footprint.

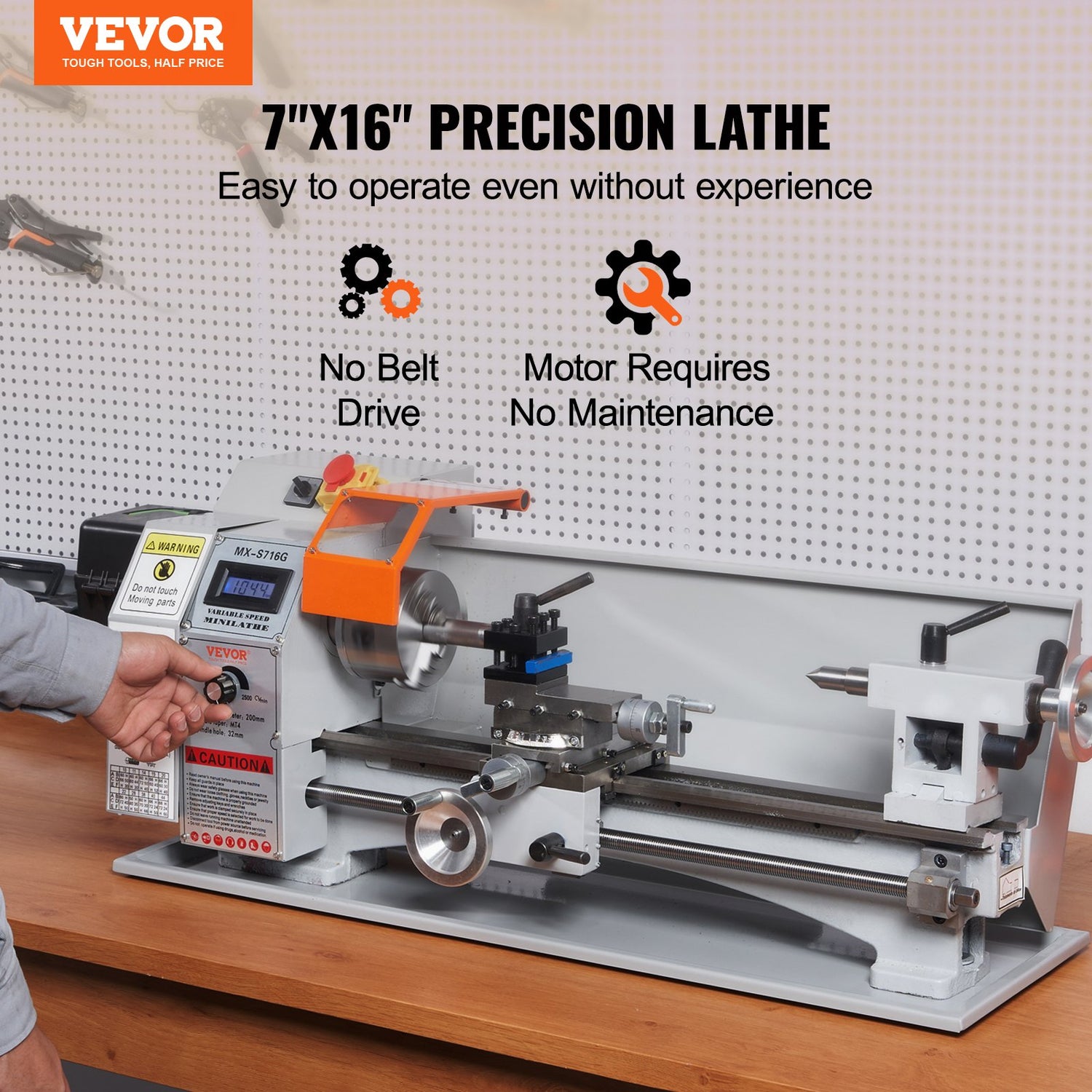

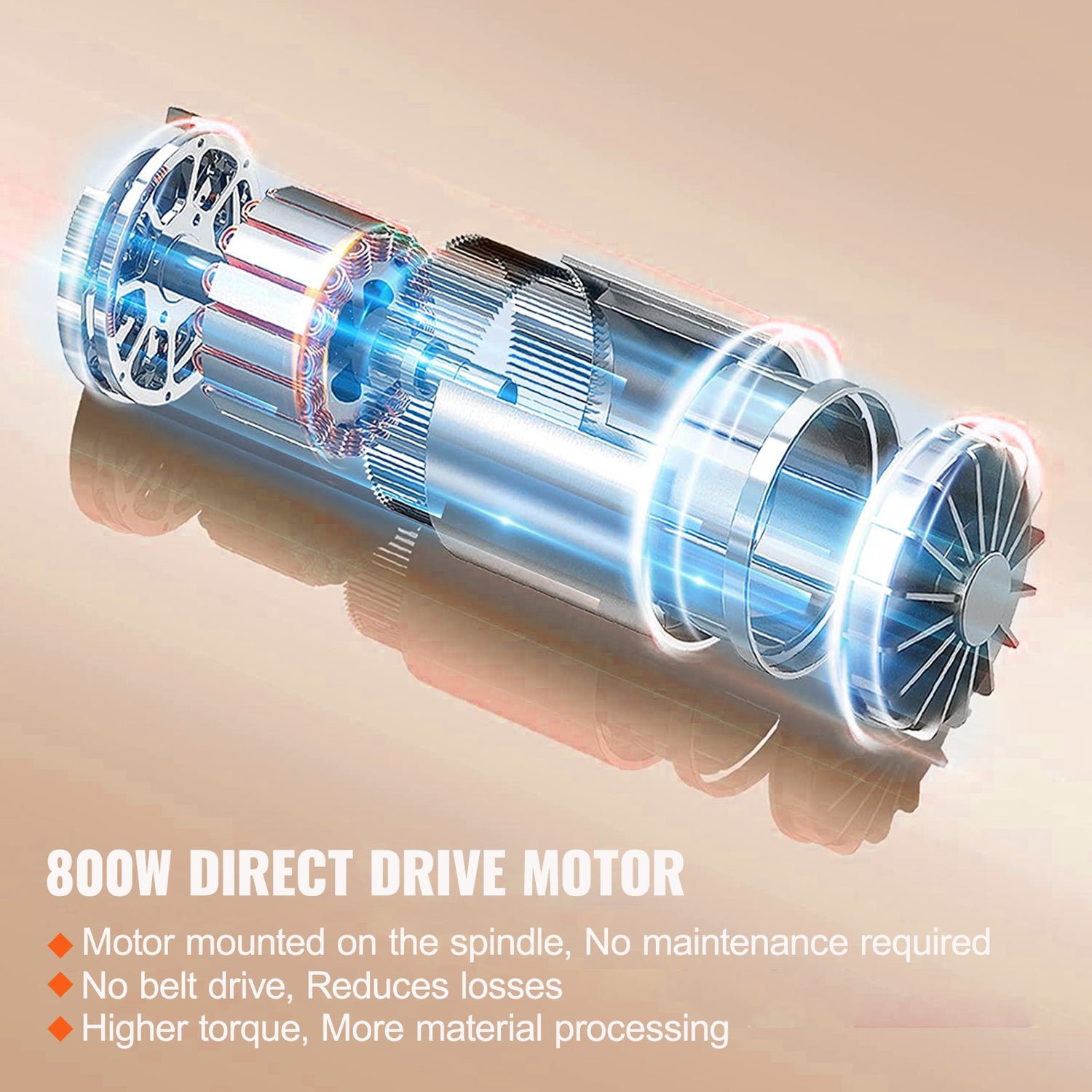

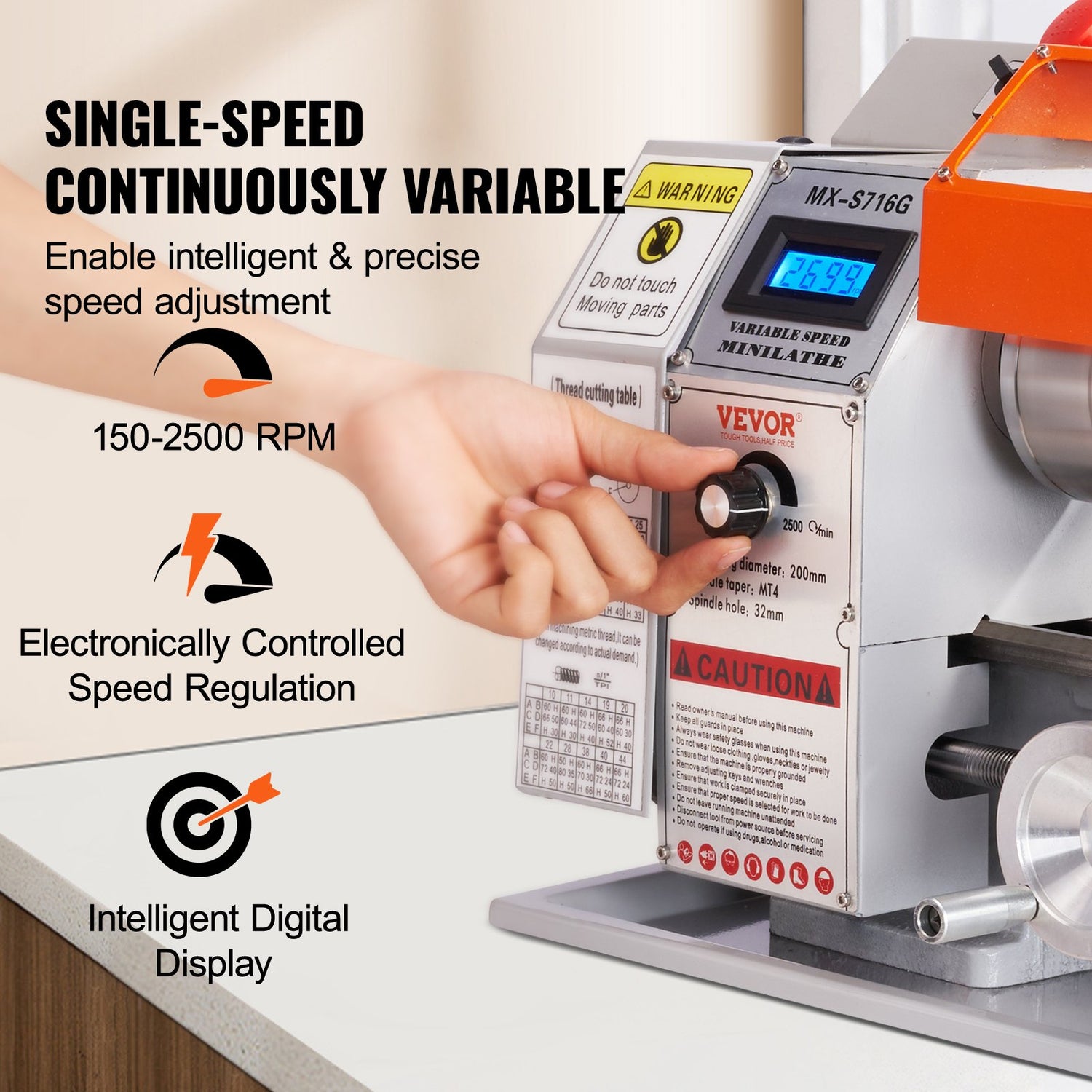

Drive comes from a direct drive brushless motor rated by the supplier at 800 W, so there is no belt to slip or replace and no brushes to swap out. The spindle runs forward and reverse across a continuously variable 150 to 2500 RPM range, with electronic speed control and a digital display for reading settings at a glance.

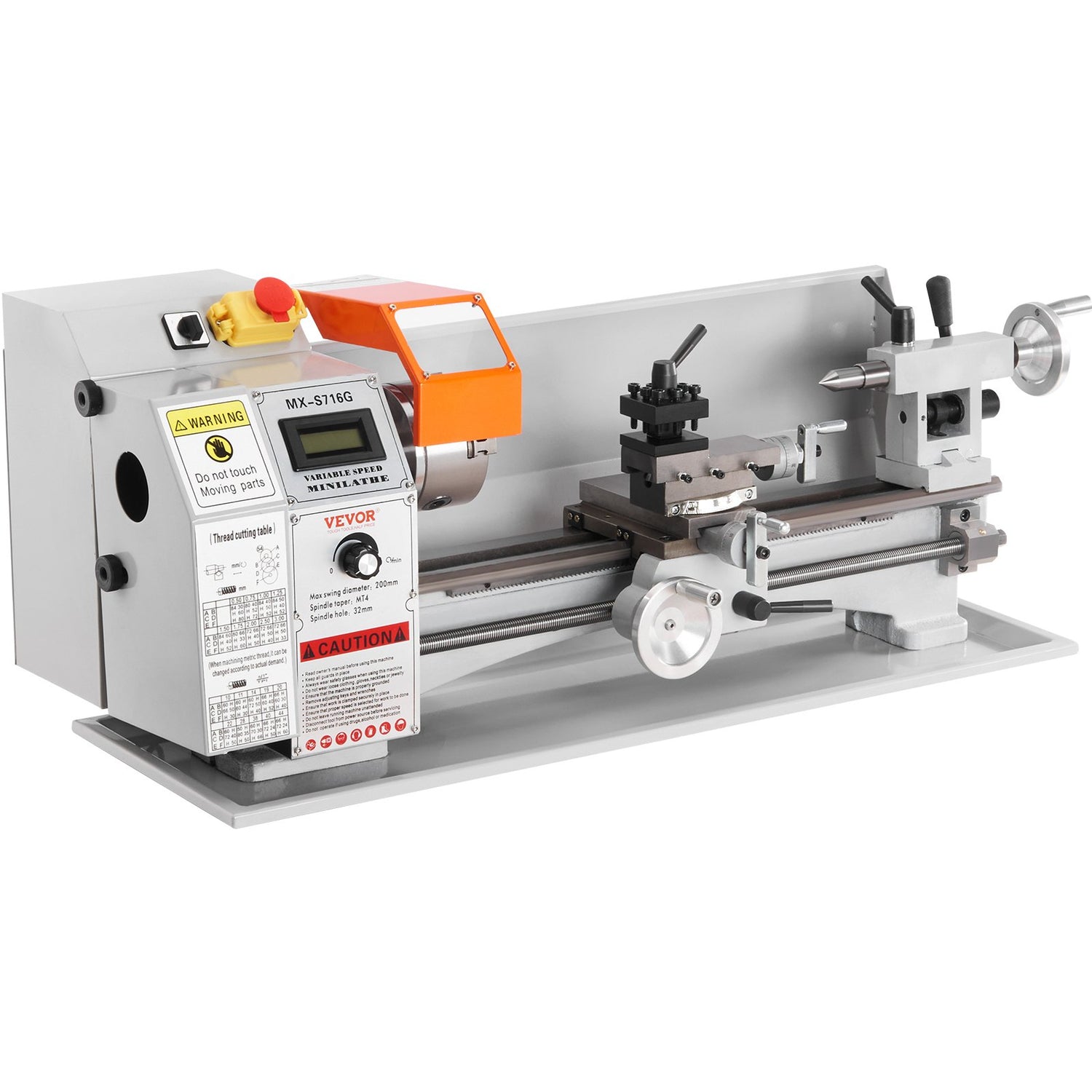

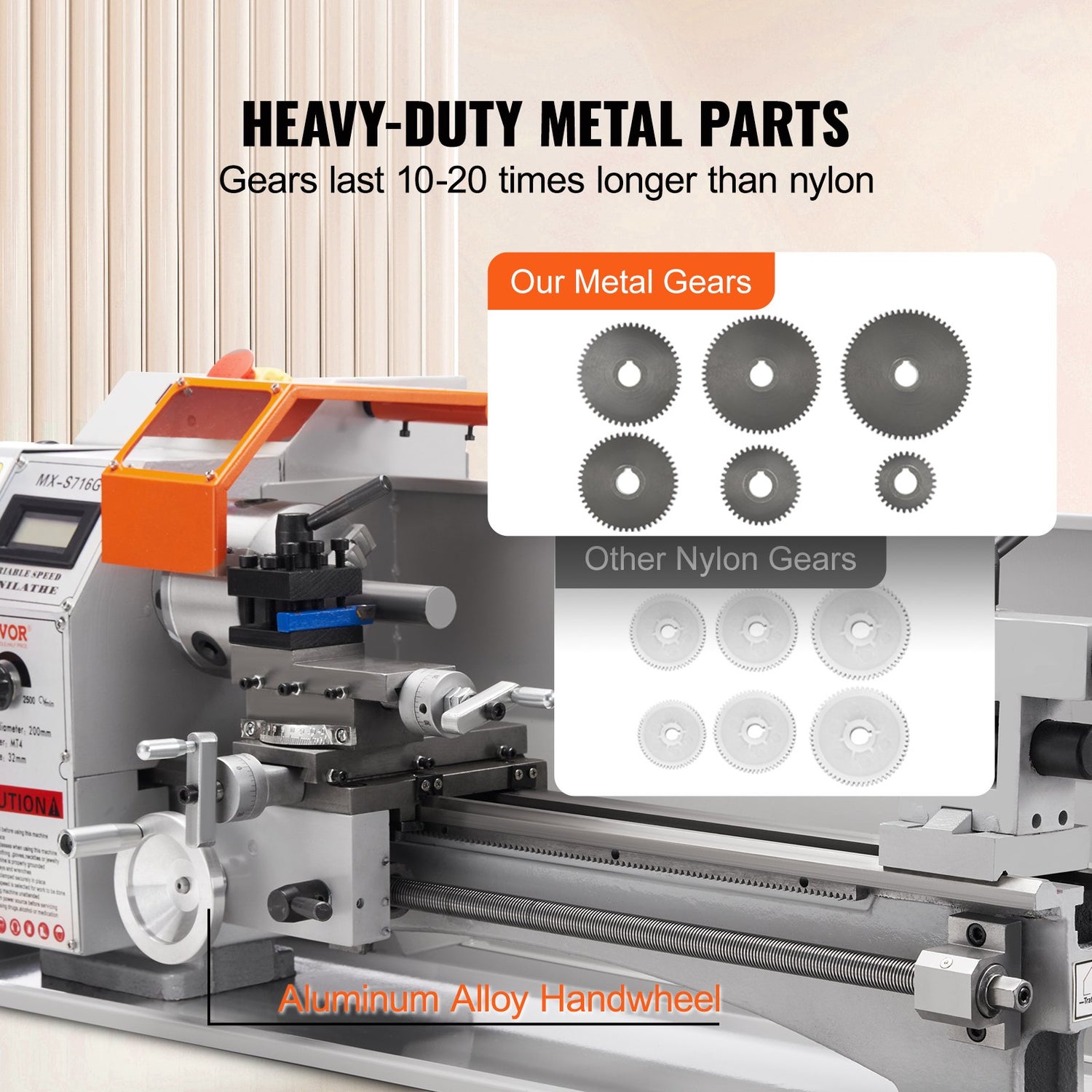

Construction is HT200 cast iron with metal gears and aluminium alloy handwheels. Safety hardware fitted to the machine includes an emergency stop switch, overload protection, a chuck cover cut off switch and a main control panel safety switch.

Features

• Direct drive brushless motor with no drive belt to replace
• Forward and reverse spindle rotation
• Continuously variable speed with digital display
• HT200 cast iron construction with metal gears
• Aluminium alloy handwheels
• Three jaw metal chuck supplied
• Emergency stop switch and overload protection
• Chuck cover cut off switch and main panel safety switch
• Thread cutting across metric and imperial pitches

Specifications

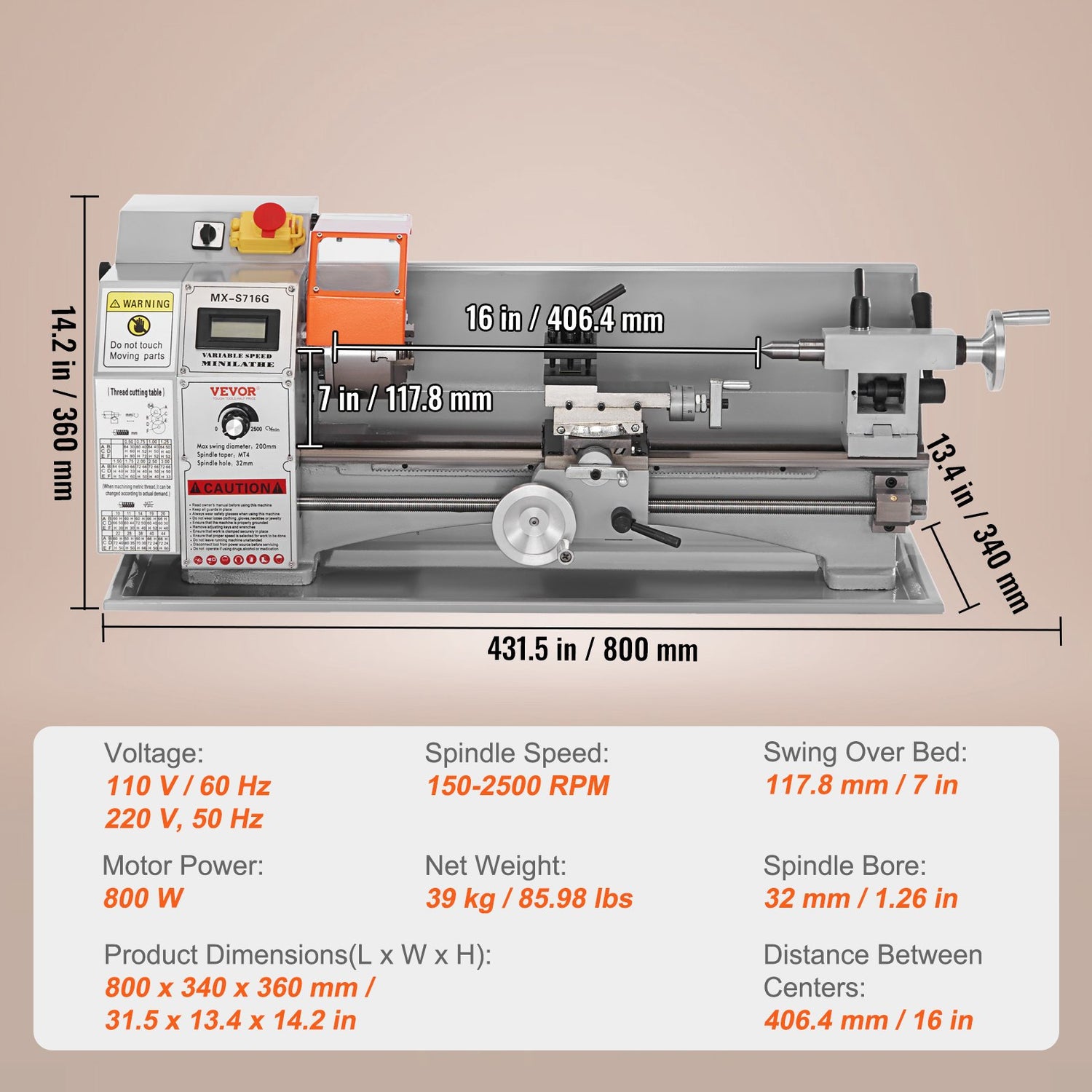

• Working capacity: 180 x 400 mm (7 in x 16 in)
• Motor: 800 W brushless, direct drive (supplier stated)
• Speed range: 150 to 2500 RPM, continuously variable
• Spindle direction: Forward and reverse
• Body material: HT200 cast iron
• Handwheels: Aluminium alloy
• Chuck: Three jaw metal

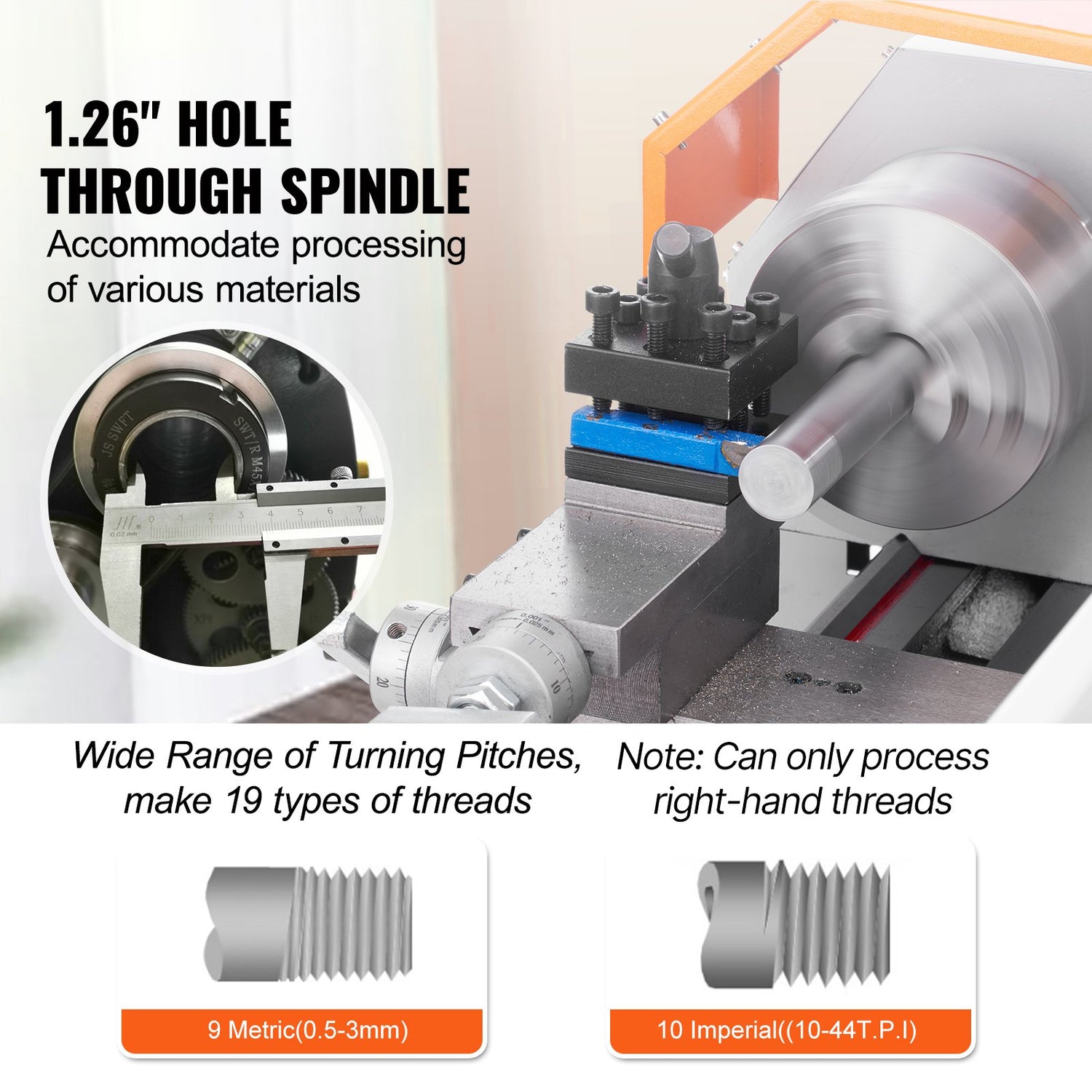

• Threads: 19 pitches total, 9 metric (0.5 to 3 mm) and 10 imperial (10 to 44 TPI)
• Placement: Benchtop

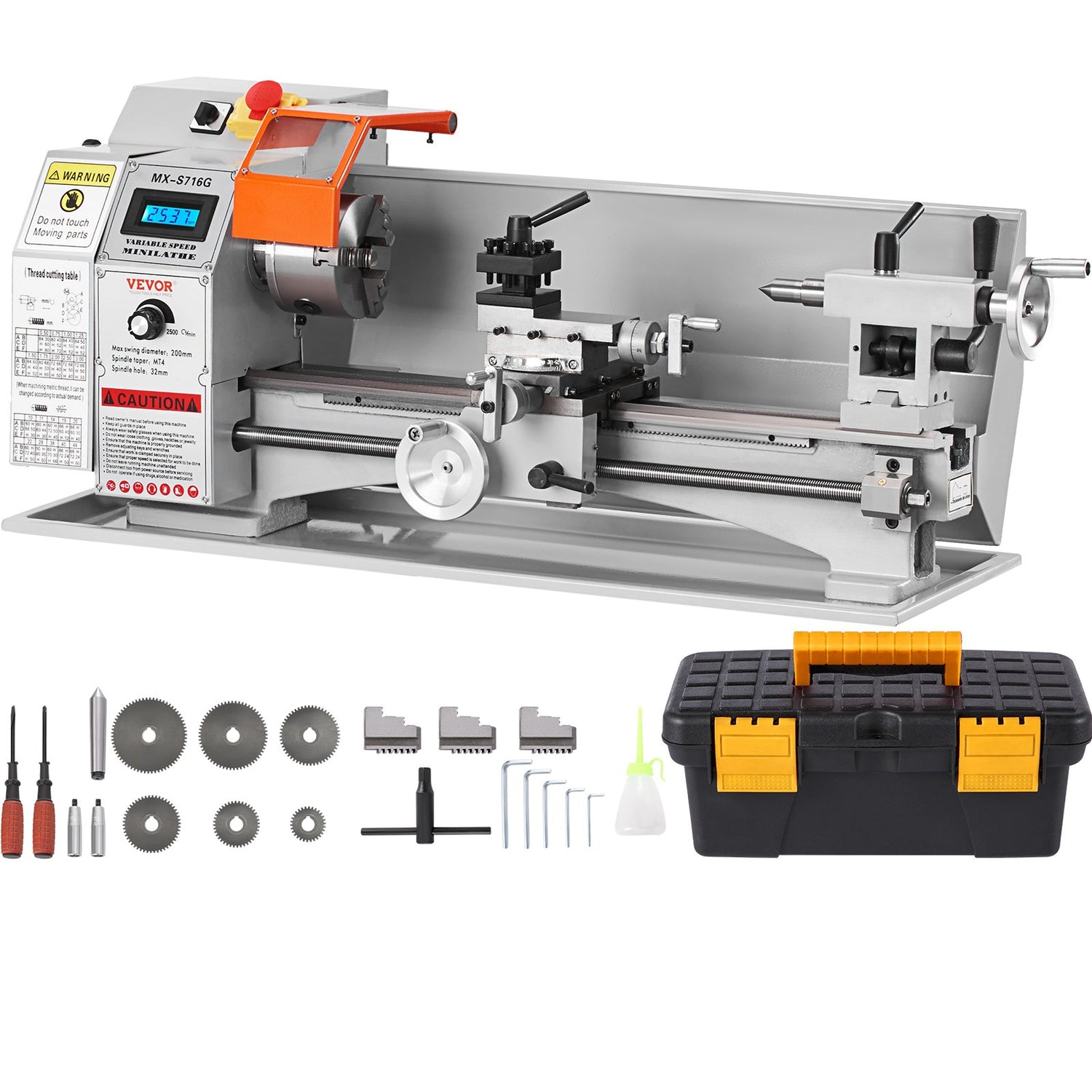

Package Contents

• 1 x Mini metal lathe
• 1 x Three jaw metal chuck
• 1 x Tool box with accessories
• 1 x User manual
